SAW Дуплексер

Наименование	Полоса пропускания, МГц	Потери, дБ	Номинальная частота, МГц	Корпус

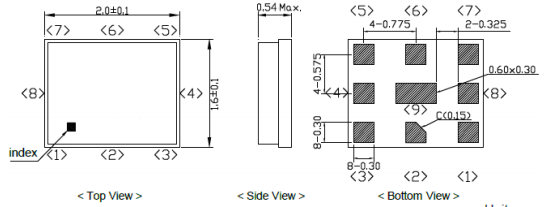

TF0109B	70	3.0	2535	2.0x1.6x0.54
TF0116A	70	3.2	2535	2.0X1.6X0.5
TF0109A	70	3.0	2535	2.0X1.6X0.5
TF0124C	70	2.9	2535	1.8x1.4x0.5
TF0124B	70	2.9	2535	1.8x1.4x0.5
TF0124A	70	2.9	2535	1.8x1.4x0.5

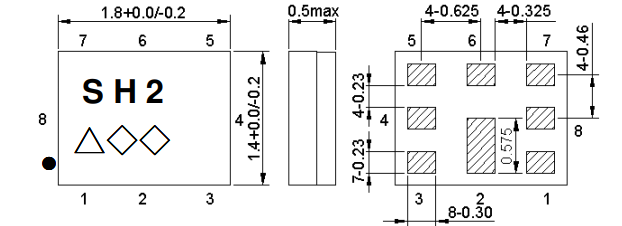

TF0124AA	70	2.8	2535	1.8X1.4X0.5
TF0126C	60	3.2	1950	1.8X1.4X0.5
TF0214A	59.04	2.2	1950	1.8X1.4X0.5
TF0120DB	60	2.8	1950	1.8x1.4x0.65

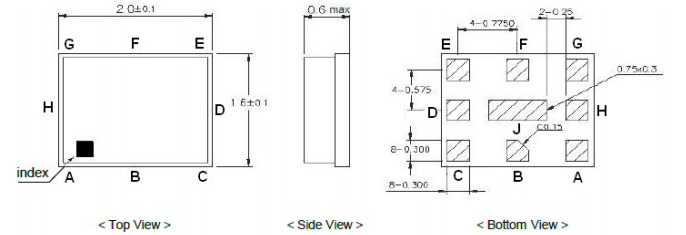

TF0104B	60	2.5	1950	2.0x1.6x0.6
TF0104A	60	2.5	1950	2.0X1.6X0.5

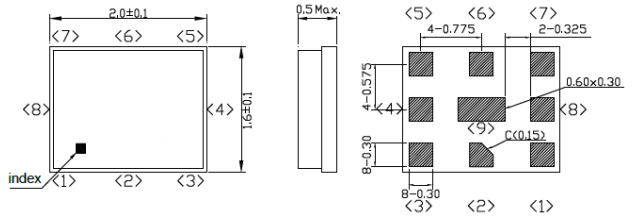

TF0088A	60	2.2	1950	2.0X1.6X0.5
TF0126B	60	2.2	1950	1.8X1.4X0.5
TF0120C	59.04	2.2	1950	1.8x1.4x0.5
TF0126D	60	2.3	1950	1.8x1.4x0.65
TF0120D	60	2.6	1950	1.8x1.4x0.65
TF0120A	59.04	2.2	1950	1.8x1.4x0.5
TF0126DA	60	2.6	1950	1.8x1.4x0.65
TF0098A	60	2.3	1950	2.0x1.6x0.5
TF0126A	60	2.2	1950	1.8x1.4x0.5
TF0120DA	60	2.6	1950	1.8x1.4x0.65
TF0136C	65	4.6	1882.5	1.8x1.4x0.5
TF0136A	64	3.8	1882.5	1.8x1.4x0.5
TF0136B	65	4.2	1882.5	1.8x1.4x0.5

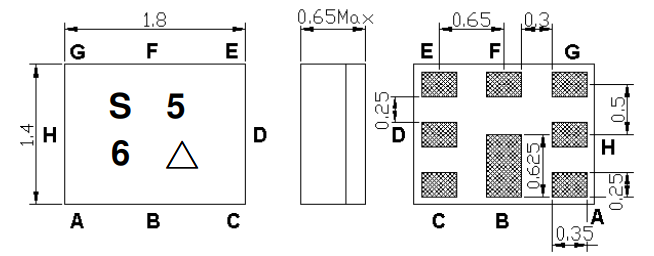

TF0203A	59.04	3.0	1880	1.8X1.4X0.65

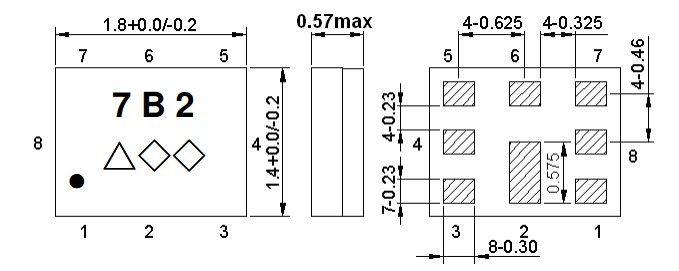

TF0213A	59.04	3.2	1880	1.8X1.4X0.57

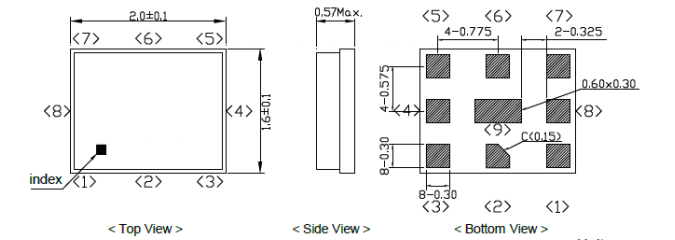

TF0105B	60	3.5	1880	2.0x1.6x0.57
TF0105A	60	3.5	1880	2.0X1.6X0.5
TF0103A	60	3.5	1880	2.0X1.6X0.5

Показано 1-30 из 100
